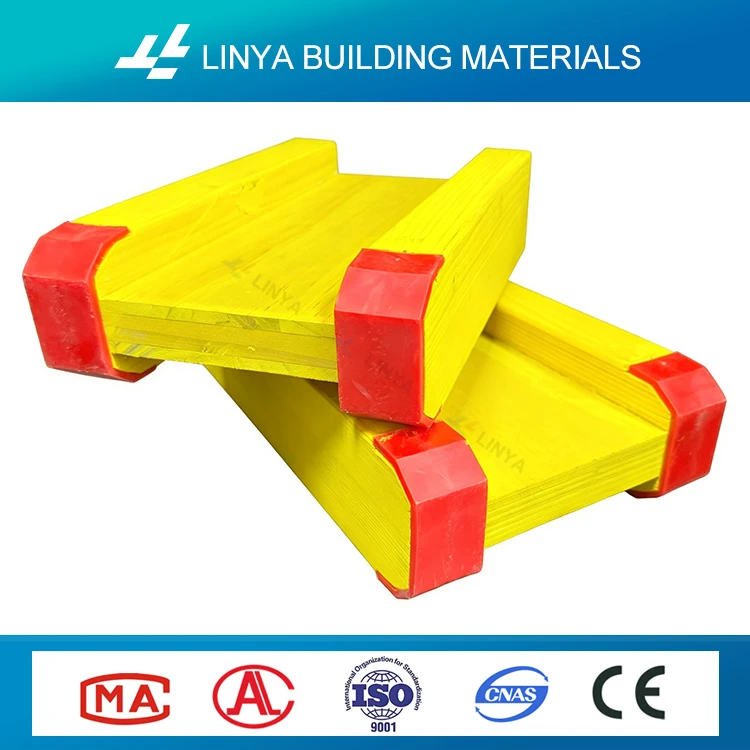

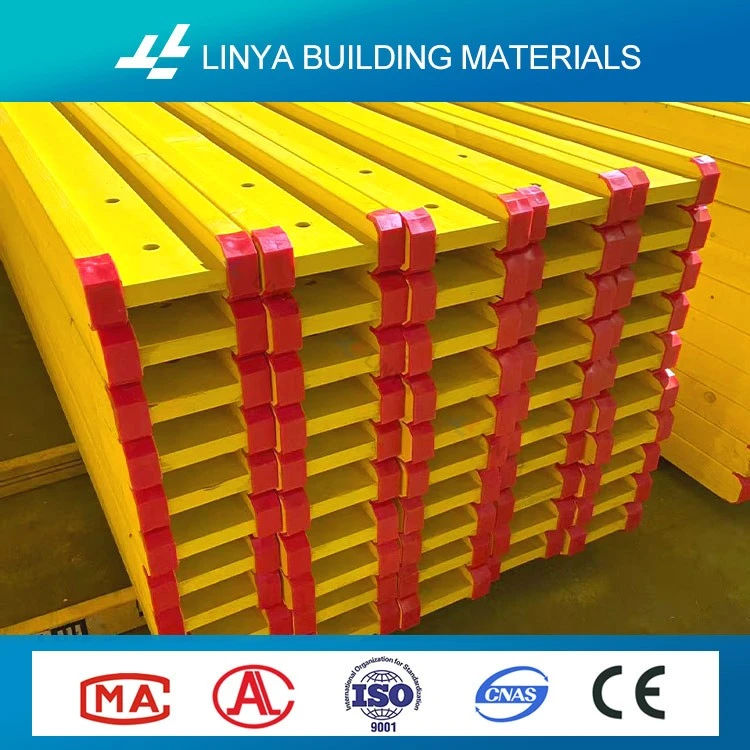

Wood Beam H20 is a special composite load-bearing wooden component specifically designed for the building formwork system. It is formed by bonding the upper and lower solid wood finger-jointed flanges with the middle waterproof laminated board web through high-pressure waterproof glue. The overall shape is a I-beam section. Wood Beam H20 mostly uses dried spruce and pine as raw materials, strictly controlling the moisture content. It is equipped with multiple layers of phenolic waterproof laminated board webs, with plastic protective heads added at both ends and anti-corrosion and waterproof paint applied. This product takes into account both structural strength and resistance to damp conditions in construction sites.
Compared to traditional solid wooden squares, Wood Beam H20 is lighter in weight, has excellent bending resistance, is less prone to warping and deformation, and the board surface is highly smooth after pouring. It is compatible with standardized specifications for various formwork supports such as roof panels, walls, and columns. It can be used in combination with steel supports and aluminum formwork systems. It can be cut on-site to fit irregular construction scenarios, has a long turnover service life, and is widely used in cast-in-place concrete projects in building construction, bridges, and high formwork projects. At the same time, Wood Beam H20 can also be used as a lightweight wooden structure floor or roof load-bearing component, and is a mainstream formwork back-ridge material for modern construction, being efficient and economical.
Product Parameters
|

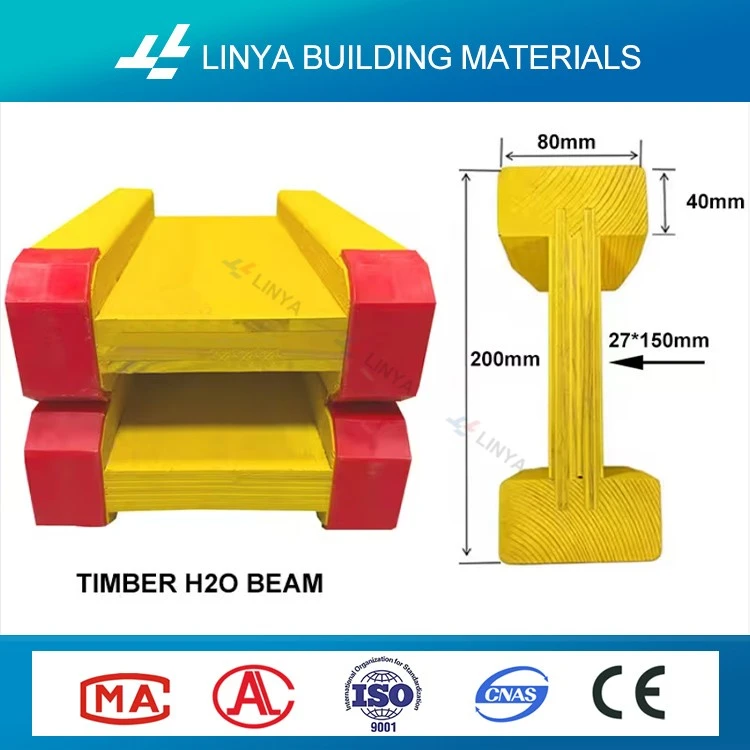

Section dimensions |
Total height 200mm; Upper and lower flanges 80mm × 40mm; Web thickness 27mm |
|
Material |
Edge flanges are spruce, the middle layer is poplar and eucalyptus plywood |
|

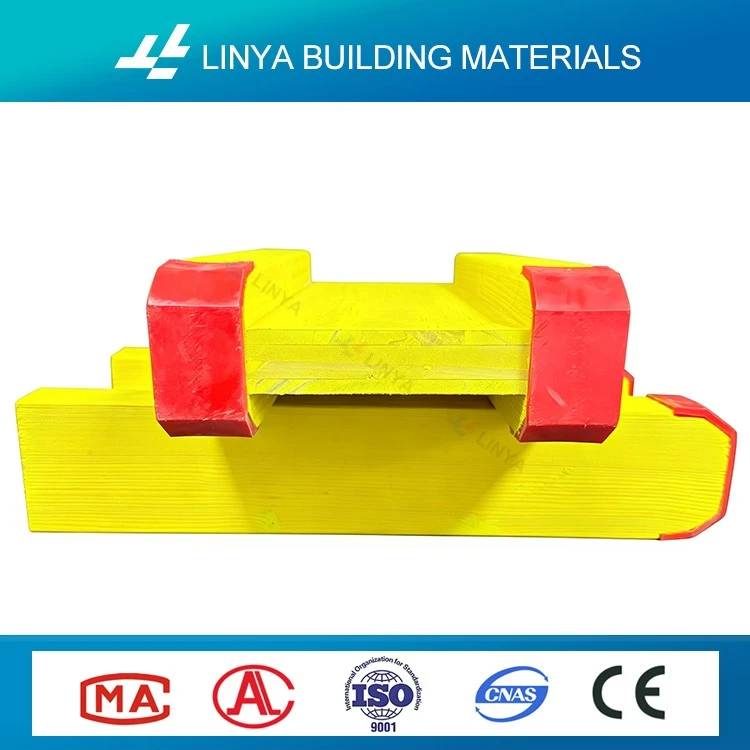

Collision prevention head classification |
no bumper, half bumper, full bumper, metal bumper |
|
Moisture content |
EX-Factory control 12% ± 2% |
|
Per meter weight |
4.8～5.2kg/m |
|
Mechanical properties |
Strong bending bearing capacity, high rigidity, not prone to bending deformation |
Product Advantage
Lightweight & high strength, reducing labor & materials
Under the same load-bearing conditions, the Wood Beam H20 is half as light as solid wood planks. It has low self-weight and high bearing strength. Under the same load, less materials are used, making transportation and erection more effortless and convenient.
Stable in size, not prone to deformation, with high construction accuracy
The Wood Beam H20 solid wood flange is combined with the laminated board web for composite pressing. The internal stress is balanced, and it is less affected by temperature and humidity changes. It is not likely to cause warping, twisting, cracking or deformation problems, ensuring the concrete pouring surface smooth and clean.
Higher turnover rate, more cost-effective for long-term projects
The Wood Beam H20 is wear-resistant and scratch-resistant. When properly stored and used in accordance with normal standards, it can be recycled for multiple cycles. Compared to one-time wooden blocks, the amortized cost for long-term projects is lower, and its economic benefits are outstanding.
Waterproof & resistant to mud slurry, suitable for damp environments in construction sites
The Wood Beam H20 is fully coated with waterproof and anti-corrosion paint. It is equipped with an end protection cover and is resistant to mud slurry and short-term rain exposure. The glued layer is waterproof and does not delaminate.
Product Application
Wood Beam H20 Product Applications
Residential and Infrastructure Construction
Top and secondary joists for floor and roof panels, combined with steel supports and top supports to form the roof support system. Suitable for high-rise residences, commercial complexes, and factory floor slabs.
Infrastructure Bridge Construction
Back Rails for Bridge Piers and Caps; Supporting Beams for Box Beams and Cast-in-place Beams; Municipal Culverts and Underground Pipe Lanes for Cast-in-place Formwork Systems
Light Wood Structures
Wood Beam Deck Trusses for Floor Load-bearing; Main and Secondary Beams for Roof Load-bearing, Supporting Roof Insulation, Waterproofing, and Roof Loads
Temporary Construction Support Projects
Temporary Work Platforms at Construction Sites, Bottom Supports for Load-bearing Scaffolding Boards; Temporary Stands, Guard Railing Platforms for Load-bearing Frameworks
Company Profile
Shenzhen Linya Building Materials Co., Ltd. has been dedicated to the R&D and production of building formwork and materials over 10 years, with business cooperation spanning over 70 countries worldwide, involving more than 9,000 project engineering projects. Its main products include Steel Prop, Plastic Formwork, PP hollow building formwork, PVC plastic formwork, Film Faced Plywood, LVL board, H20 Timber Beam and other full categories of building materials.
Own Factory
Own 150,000㎡ intelligent manufacturing plant in Linyi, with fully automated production lines and complete supporting facilities. Sufficient production capacity, strict quality control, stable quality, and customizable according to needs;
Professional Team
Shenzhen professional foreign trade team operates its own export, one-stop service for quotation, documents, logistics, and after-sales, giving you peace of mind.
10+ Years
150,000 ㎡
70+ Countries
9000+ Projects

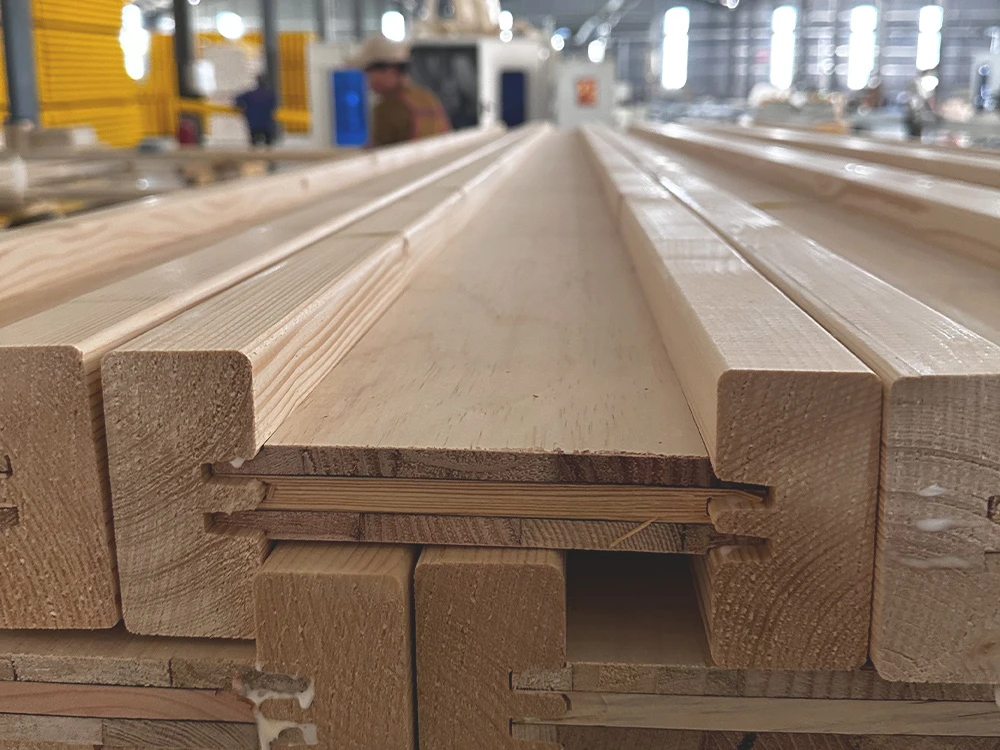

Production Workshop
Product Packaging

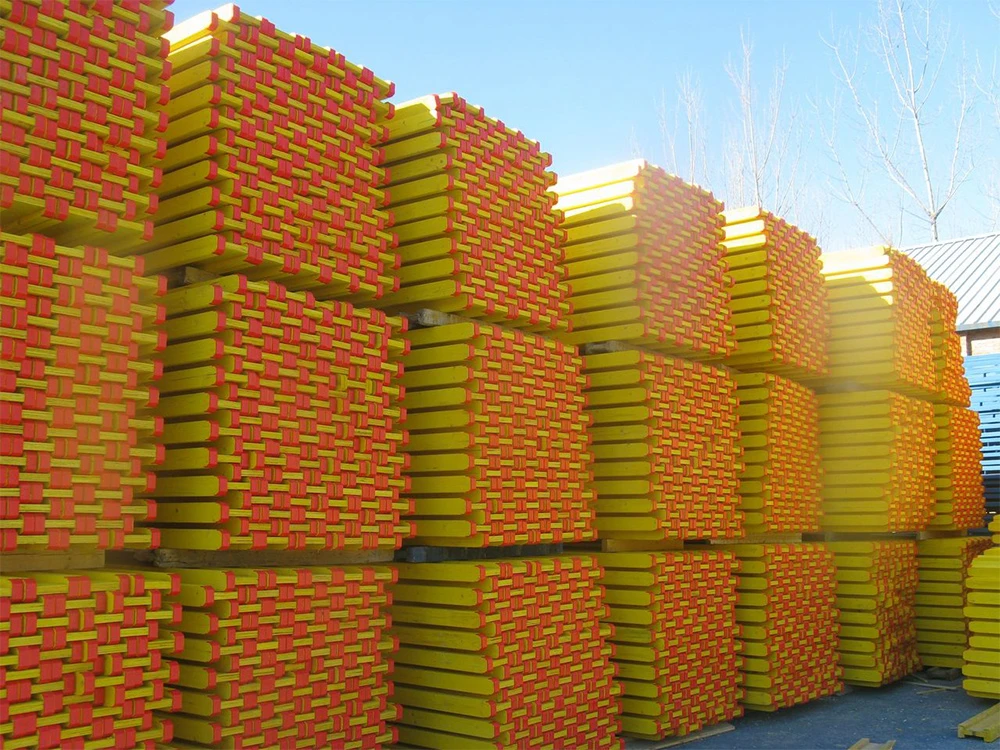

Wood Beam H20 Packaging
1. Loose Packing:
Load more quantity and save cost

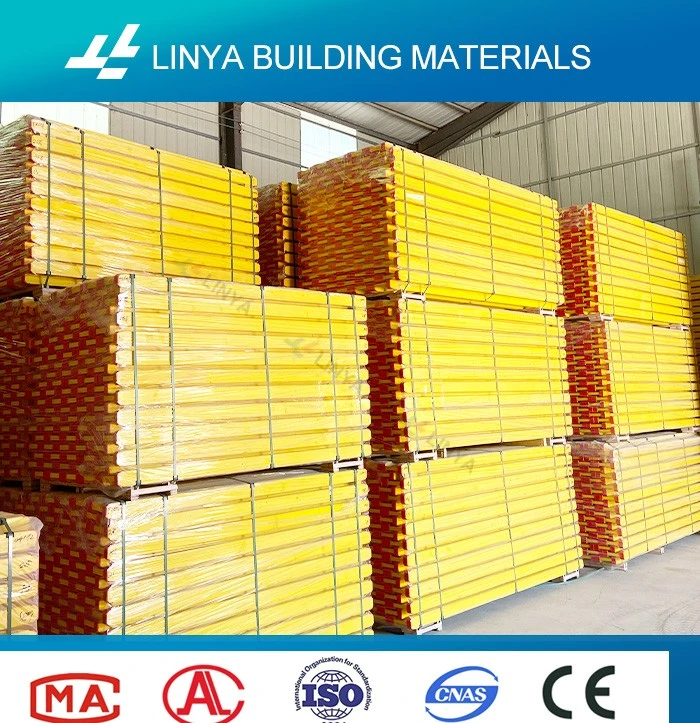

2. Pallet packing:
Easy to Load and Off-load
Container Loading and Shipping
FAQ
Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer of Wood Beam H20, with our own factory covering an area of 150,000 square meters, and we have export qualifications
Q: Exported to those regions?
A: Our Wood Beam H20 are exported to Southeast Asia, the Middle East, Africa, and Europe and America, with cooperation projects spanning over 70 countries worldwide
Q: What is the raw material of Wood Beam H20?
A: Wood Beam H20 are mainly made by combining the top and bottom flanges with the middle web. The top and bottom load-bearing flanges are made from logs like Korean pine, white pine, and poplar, which are sawn, dried, and finger-jointed. The middle web is made from plywood pressed from rotary-cut veneers of poplar or pine, while high-end versions use LVL straight-grain laminated veneers. During production, they are glued with waterproof phenolic resin under high heat.
Q: What's your Minimum Order Quantity?
A: We are relatively flexible about the minimum order quantity and will provide you with reasonable minimum order suggestions based on the specific product specifications and order requirements .The larger the order quantity, the lower the unit transportation cost. Especially for larger products, we recommend using full rolls or full pallets for packaging, which can be loaded and transported more efficiently and save logistics costs.
Q: How long does it take to complete your order?
A: For standard items in stock, we usually ship within 3–5 working days. Custom or bulk orders may take approximately 10–25 days, depending on specifications and quantity.
Q: Can you arrange samples for us?
A: Yes, samples are available. We recommend small cut sample pieces for quality confirmation, which can save your freight cost and lead time.
Q: Do you accept custom orders, including custom sizes?
A: Yes, customization is supported according to clients' requirements.
