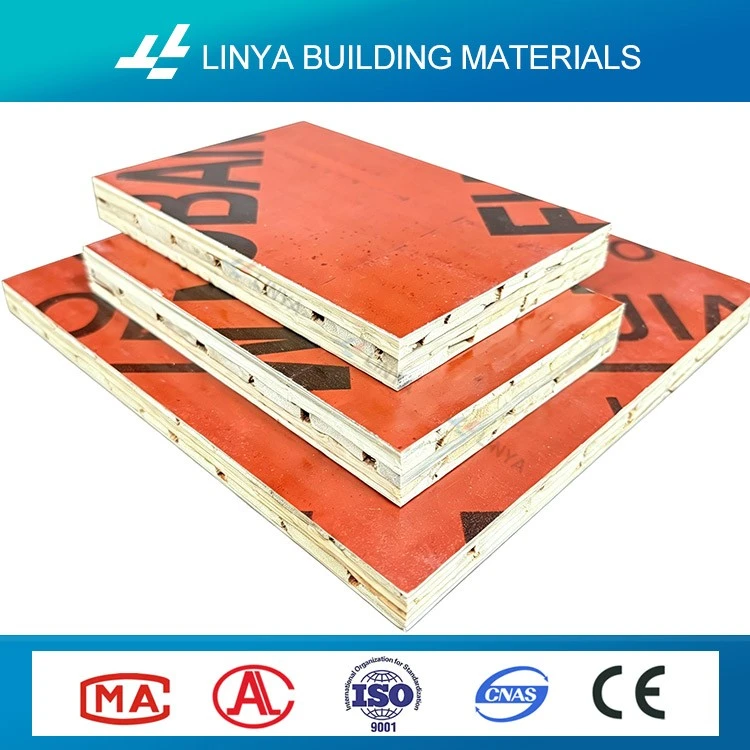

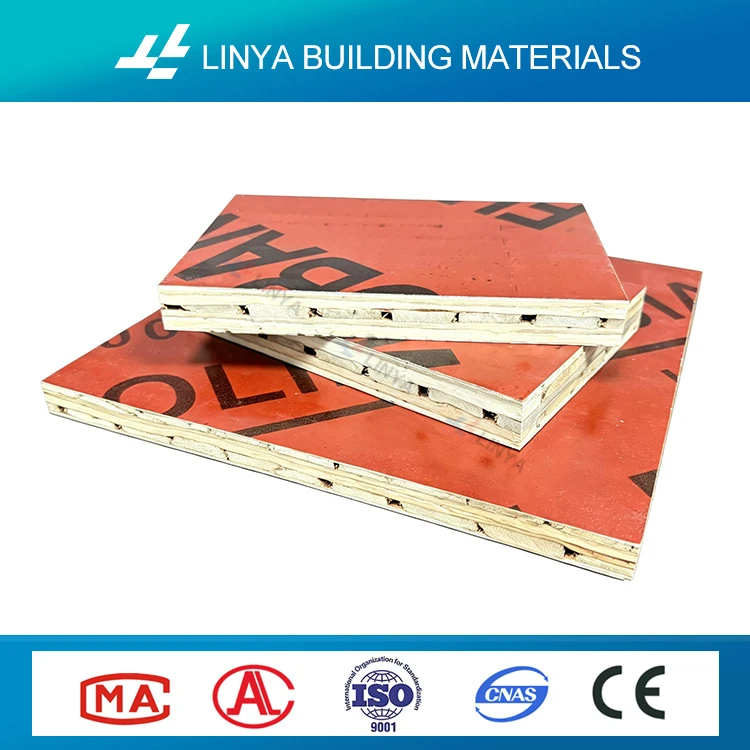

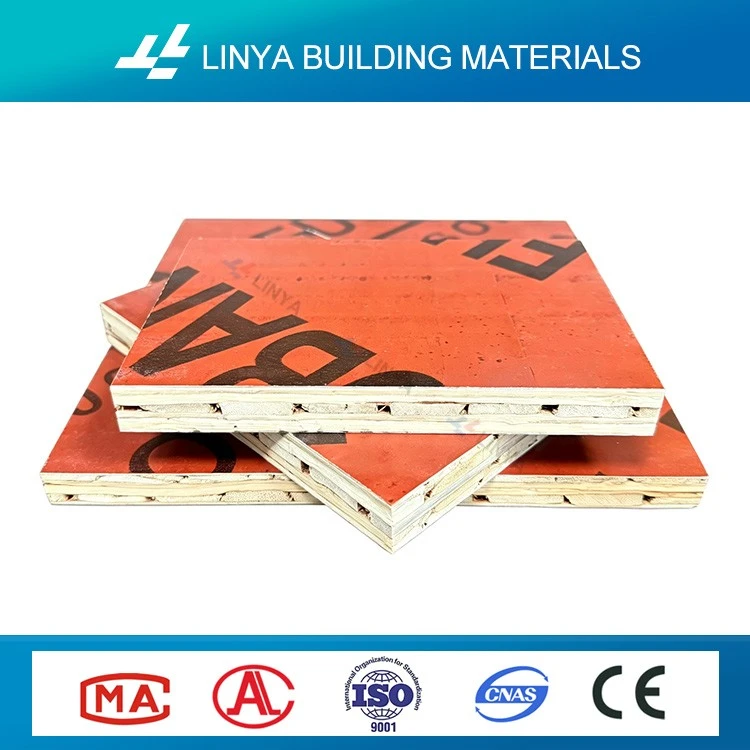

Film Faced Bamboo Plywood is made from high-quality bamboo timbers. The bamboo curtains and mats are interwoven to form the core, and are pressed at high temperature and high pressure using high-water-resistant phenolic resin glue. The front and back surfaces of the board are coated with waterproof and wear-resistant phenolic film. With excellent waterproof and anti-stick properties, Film Faced Bamboo Plywood features smooth and dense surface, makes easily removed after concrete pouring and the components are formed smoothly without additional plastering. The bamboo core has strong toughness, can resist bending and compression, and is not prone to warping or deformation. Double-sided laminated coating provides dual protection. It is resistant to cement corrosion, does not peel or fall off, and has a high number of normal construction application cycles. The Film Faced Bamboo Plywood is convenient for cutting and drilling, has a complete range of specifications, and is widely used in various concrete projects such as housing construction, bridges, tunnels, and water conservancy. It has outstanding cost-effectiveness and is commonly used as a high-strength construction formwork on construction sites.
Product Parameters
|
Size |
0.915x1.83m (3x6 ft) / 1.22x2.44m (4x8 ft) customizable |
|
Regular thickness |
8mm, 10mm, 12mm, 15mm, 18mm, 20mm |
|
Moisture content |
6%～12% |
|
Density |
680–750kg/m³ (much higher than wood formwork at 500–600kg/m³) |
|
Factory moisture content |
8%–12% |
|
Static bending strength |
≥90MPA |
|
Elastic modulus |
≥8500MPA |
|
Board surface nail retention force |
≥900N |
Product Advantage
Double-sided coating, excellent demolding effect
Both sides are coated with waterproof phenolic film. The surface of Film Faced Bamboo Plywood is smooth and dense, preventing the concrete from adhering to the surface during pouring. After demolding, the wall is flat and smooth, eliminating the need for secondary plastering, and saving labor and materials.
Waterproof & moisture-resistant, highly suitable for construction sites
Film Faced Bamboo Plywood provides highly water-resistant phenolic resin compression molding, double-sided film coating to prevent moisture, no water absorption or swelling, no layering even during rainy days, underground, underwater engineering projects. It is not affected by water and does not expand. It is durable when stored outdoors and is not restricted by humid environments.
Excellent strength & good toughness, not prone to deformation
Using moso bamboo as the raw material, the bamboo curtains and bamboo mats are interlaced and pressed together. Its bending, compression and impact resistance far exceed that of ordinary wooden templates. Film Faced Bamboo Plywood is unlikely to bend, warp or crack under heavy pouring pressure.
High turnover rate, low overall cost
Film Faced Bamboo Plywood features with double-layer film protection, resistant to wear and scratches, and high reused times during proper construction, resulting in lower single-use cost; pest-proof and corrosion-resistant, with minimal wear and tear. Compared to ordinary wooden templates, Film Faced Bamboo Plywood is more cost-effective.
Product Application
Film Faced Bamboo Plywood Product Application

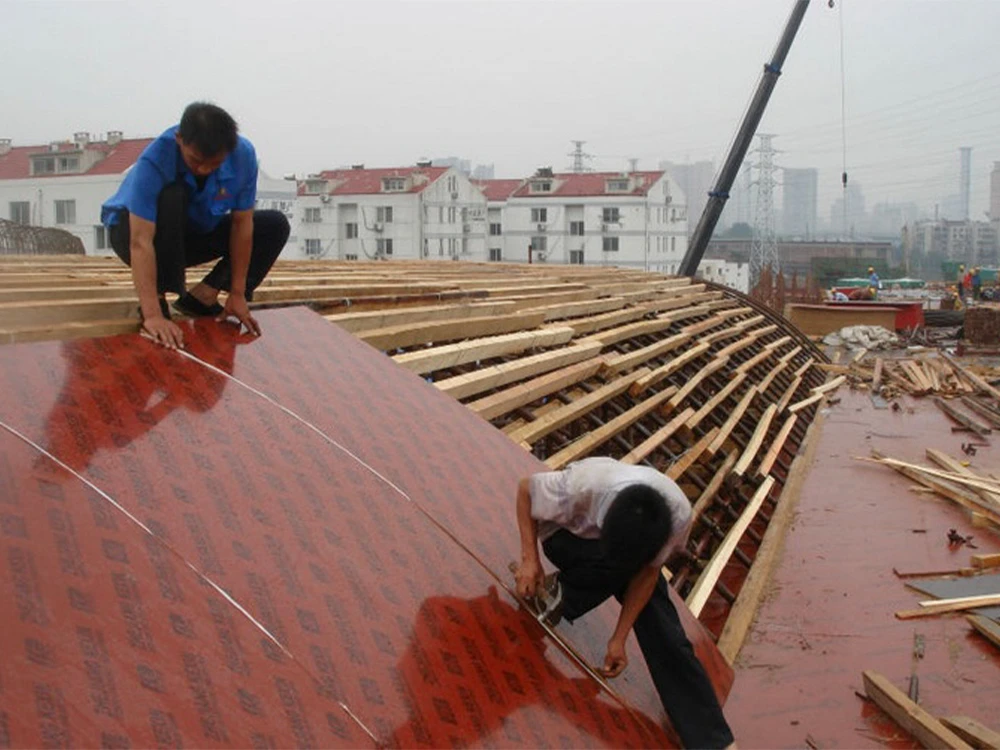

Residential construction projects
Shear walls, beams and columns, floor slabs of high-rise and small high-rise residential buildings, basement, garage, and civil defense projects, moisture-proof and waterproofing, no swelling or deformation;
Road and water conservancy projects
Overpasses, municipal bridge abutments, piers, curved surface formwork of box girders, tunnels, culverts, river banks, dams, and water conservancy projects for hydropower stations;
Municipal infrastructure
Urban pipe galleries, comprehensive pipe trenches, retaining walls, pedestrian overpasses, concrete pouring for sewage tanks and septic tanks, suitable for humid working conditions;
Special industrial pads
Container bottom plates, cargo vehicle compartment load-bearing pads, temporary pads for construction site roadbeds, load-bearing pads for large equipment.
Company Profile
Shenzhen Linya Building Materials Co., Ltd. has been dedicated to the R&D and production of building formwork and materials for 10 years, with business cooperation spanning over 70 countries worldwide, involving more than 9,000 project engineering projects. Its main products include Steel Prop, Plastic Formwork, PP hollow building formwork, PVC plastic formwork, Film Faced Plywood, LVL board, H20 Timber Beam and other full categories of building materials.
Own Factory
Own 150,000㎡ intelligent manufacturing plant in Linyi, with fully automated production lines and complete supporting facilities. Sufficient production capacity, strict quality control, stable quality, and customizable according to needs;
Professional Team
Shenzhen professional foreign trade team operates its own export, one-stop service for quotation, documents, logistics, and after-sales, giving you peace of mind.
10+ Years
150,000 ㎡
70+ Countries
9000+ Projects

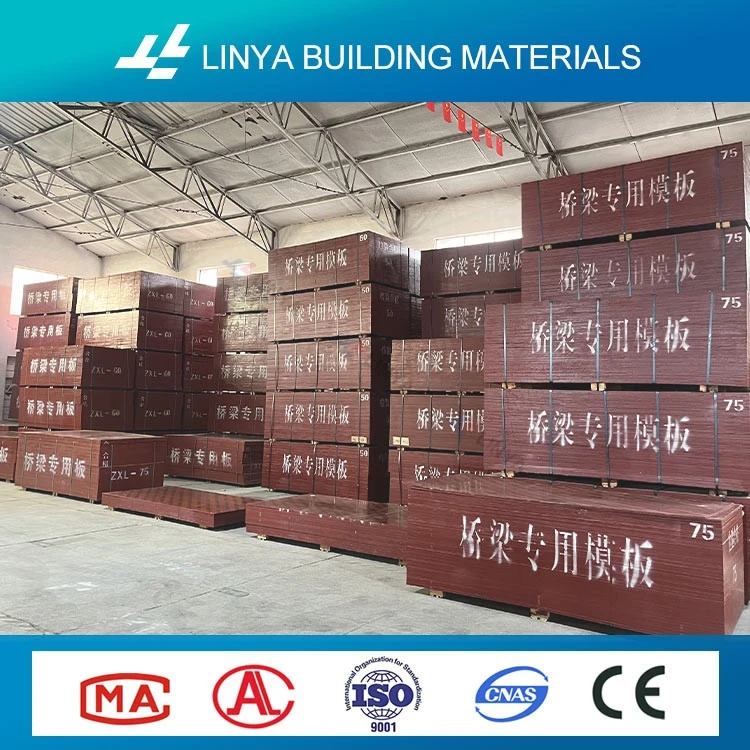

Production Workshop
Product Packaging
Film Faced Bamboo Plywood Packaging
1. Loose Packing:
Load more quantity and save cost
2. Pallet packing:
Easy to Load and Lade

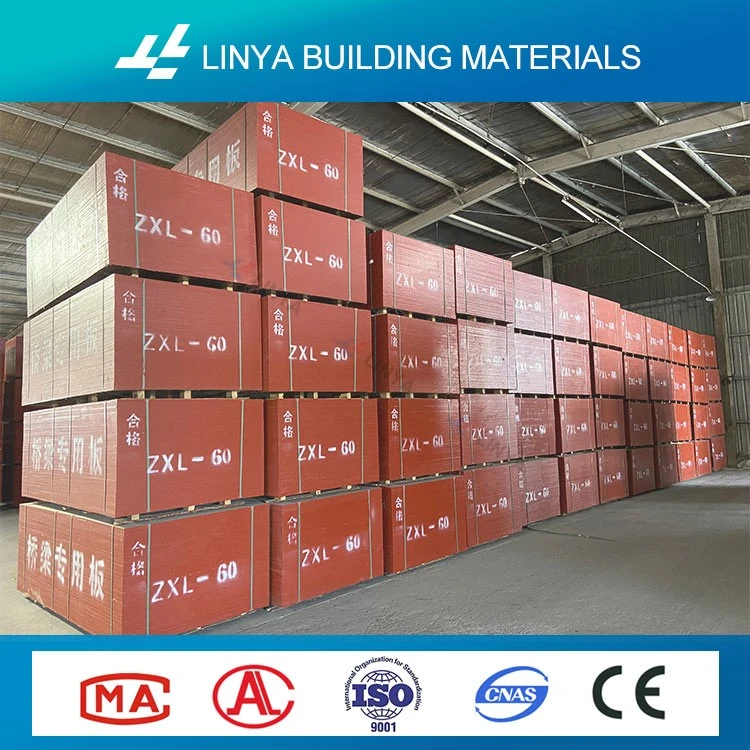

Container Loading and Shipping
FAQ
Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer of Film Faced Bamboo Plywood, with our own factory covering an area of 150,000 square meters, and we have export qualifications
Q: Exported to those regions?
A: Our Film Faced Bamboo Plywood is exported to Southeast Asia, the Middle East, Africa, and Europe and America, with cooperation projects spanning over 70 countries worldwide
Q: What raw materials are used in your Film Faced Bamboo Plywood?
A: This Film Faced Bamboo Plywood is made from high-quality mature nan bamboo. The bamboo mat is woven in a crisscross pattern and pressed under high temperature and high pressure using highly water-resistant phenolic resin glue. Both sides of the board are coated with a waterproof and wear-resistant phenolic film.
Q: What's your Minimum Order Quantity?
A: We are relatively flexible about the minimum order quantity and will provide you with reasonable minimum order suggestions based on the specific product specifications and order requirements. The larger the order quantity, the lower the unit transportation cost. Especially for larger products, we recommend using full rolls or full pallets for packaging, which can be loaded and transported more efficiently and save logistics costs.
Q: How long does it take to complete your order?
A: For standard items in stock, we usually ship within 3–5 working days. Custom or bulk orders may take approximately 10–25 days, depending on specifications and quantity.
Q: What size and thickness can you supply for construction formwork?
A: Common standard sizes: 1220x2440mm, 915x1830mm. Thickness options: 8mm, 10mm, 12mm, 15mm, 18mm. We accept customized length, width and thickness as your construction project needs.
Q: What is your loading and packaging method for sea shipment?
A: Two options: a. Pallet packing--Boards are packed well by standard export wooden pallets, fixed with steel strips to avoid damage during long-distance sea transport; b. Loose bulk loading directly on the container, can load more quantity and save shipping cost. We support full container load (FCL) and less container load (LCL).
