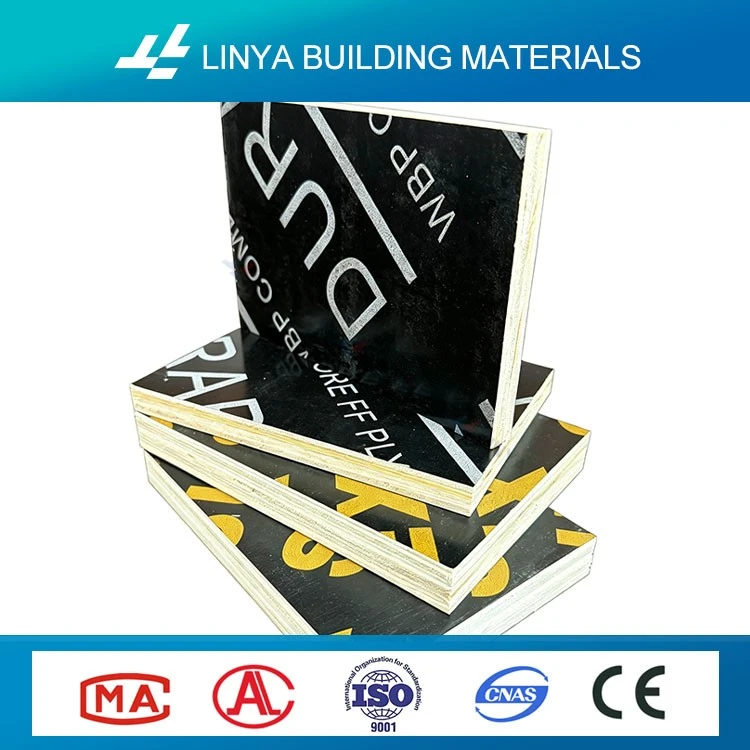

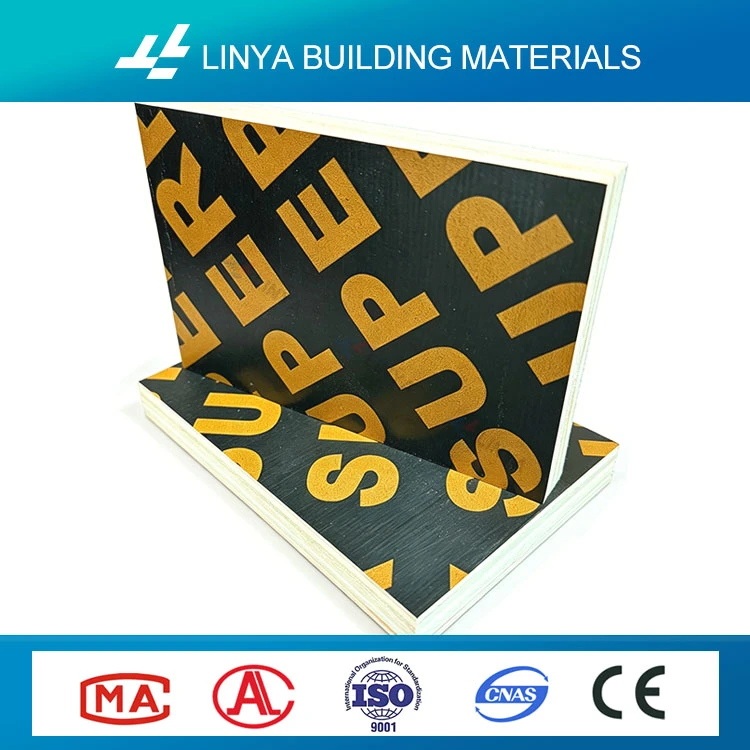

Concrete shuttering board is a specialized plywood for civil engineering, made by cross-laminating multiple layers of solid wood veneers and hot-pressing them together. The concrete shuttering board surface is coated with a high-temperature pressed black phenolic waterproof film, and all edges are sealed with paint for waterproofing. The surface is smooth and dense, so it doesn't stick to cement slurry. After removing the formwork, the concrete components are smooth and flat, achieving a fair-faced concrete finish, saving the need for plastering or repairs later, effectively reducing labor and construction material costs. The panels have excellent waterproof and moisture-proof performance, so basements and outdoor constructions during the rainy season are less likely to absorb water, warp, or delaminate. They are sturdy and have strong bending resistance, and can be reused many more times than ordinary red formwork. The panels are lightweight, can be easily cut, drilled, and nailed on site, and are suitable for processing various irregular structures like beams, columns, and stairs. They are widely used in high-rise residential buildings, factories, bridges, box culverts, civil air defense projects, and water tanks. Compared to steel formwork, the concrete shuttering board are more cost-effective and flexible to assemble and disassemble. Overall, they offer great value for money, making them a mainstream material in modern construction formwork.
Product Parameters
|
Standard Size |
915x1830mm(3x6 ft), 1220x2440mm(4x8 ft); customized |
|
Common thickness |
6-18mm, customized |
|
Raw Material |
Poplar core |
|
Moisture content |
8%–12% |
|
Static Strength |
≥60MPa |
|
Turnover rate |
12–25 times, premium ones can last over 30 times. |
|
Water absorption rate (24h) |
≤8% |
|
Temperature resistant |
-20℃～120℃, no warp in hot summer, no crack in cold winter |
Product Advantage
Good molding effect
The concrete shuttering board surface has a black phenolic coating that's smooth and dense, not sticking to cement slurry, making formwork easy to remove. After pouring, walls, beams, and columns are smooth and even, meeting fair-faced concrete standards, saving the steps of plastering, sanding, and patching, reducing mortar and labor input, and shortening the overall construction time.
Waterproof and moisture-proof
The concrete shuttering board is coated on both sides and paired with a waterproof adhesive layer, so they don't easily absorb water, swell, warp, or delaminate in basements, outdoor rainy seasons, or damp underground environments. The multi-layer veneer is pressed in an alternating pattern, giving it strong resistance to lateral pressure, so it doesn't easily bulge or leak slurry during pouring.
Higher turnover, lower overall cost
Under normal construction, Concrete shuttering board can be reused 8-15 times, far more than ordinary red templates. The per-use cost of each board is lower, and using it for large-scale projects over the long term can effectively reduce the total spending on template materials.
lightweight & easy to work with, construction is efficient
The concrete shuttering board weight is much lighter than steel formwork, so a single person can carry and lay it; the panels can be freely sawed, drilled, and nailed on site to fit for complex components like stairs, bay windows, and irregular columns. Large panels have fewer seams, making formwork assembly and dismantling faster.
Product Application
Application of Concrete shuttering board
Building construction project
High-rise buildings, resettlement housing, factory buildings, schools, shopping malls, and other main structures' shear walls, interior and exterior wall formwork, floor slabs, stair treads, and cast-in-place balcony structures
Municipal Road and Bridge Projects
Bridge piers, cap beams, box girders, crash barriers, bridge abutment formwork
Underground and civil defense projects
Basement wall panels, bottom slab side forms, garage retaining walls, civil defense basements, underground passages, and other damp, enclosed concrete structures
Water conservation and environmental protection projects
Firefighting water tanks, sewage treatment tanks, channel retaining walls, and small dam cast-in-place formwork are resistant to cement alkali corrosion, with smooth inner walls.
Company Profile
Shenzhen Linya Building Materials Co., Ltd. has been dedicated to the R&D and production of building formwork and materials for 10 years, with business cooperation spanning over 70 countries worldwide, involving more than 9,000 project engineering projects. Its main products include Steel Prop, Plastic Formwork, PP hollow building formwork, PVC plastic formwork, Film Faced Plywood, LVL board, H20 Timber Beam and other full categories of building materials.
Own Factory
Own 150,000㎡ intelligent manufacturing plant in Linyi, with fully automated production lines and complete supporting facilities. Sufficient production capacity, strict quality control, stable quality, and customizable according to needs;
Professional Team
Shenzhen professional foreign trade team operates its own export, one-stop service for quotation, documents, logistics, and after-sales, giving you peace of mind.
10 Years
150,000 ㎡
70+ Countries
9000+ Projects

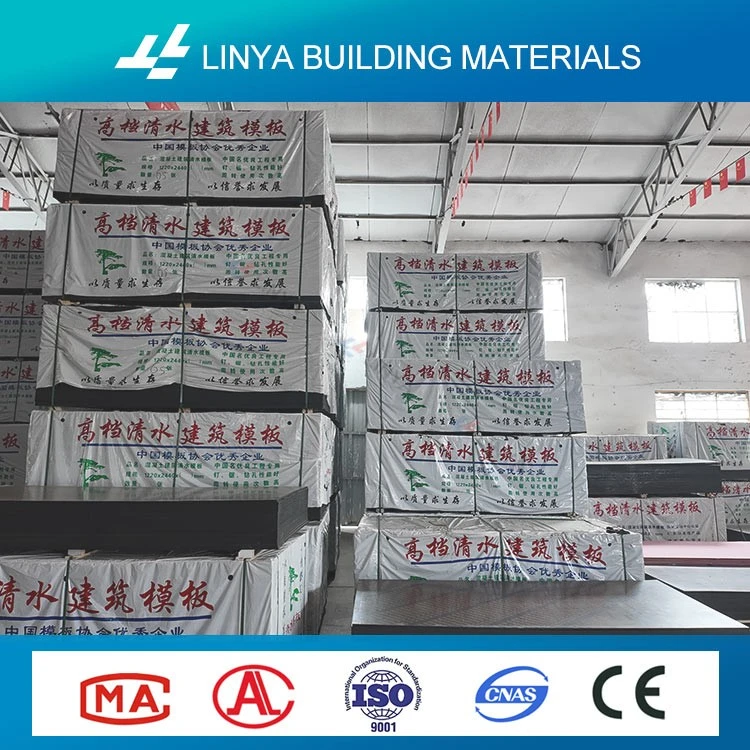

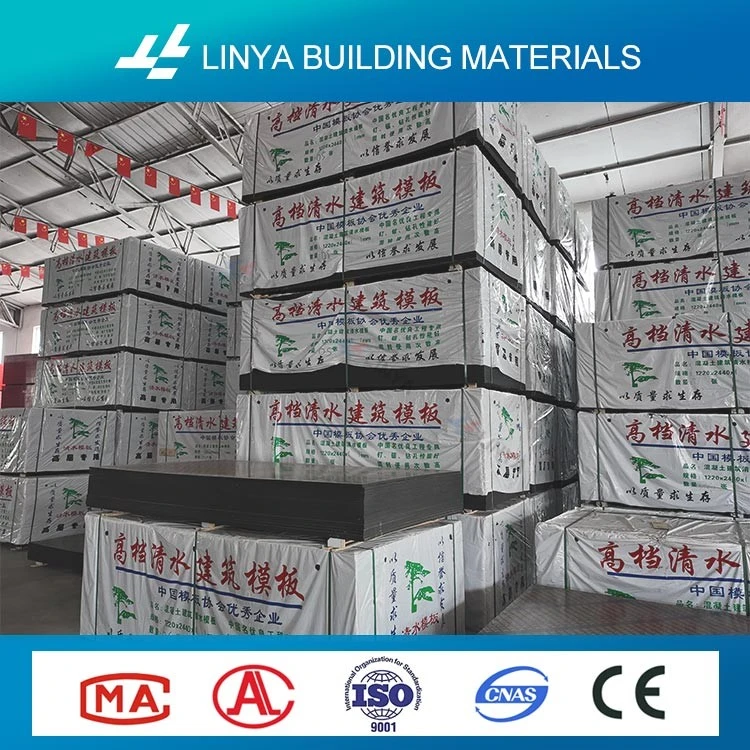

Production Workshop
Product Packaging
Concrete Shuttering Board Packaging
1. Loose Packing:
Load more quantity and save cost
2. Pallet packing:
Easy to Load and Lade
Container Loading and Shipping
FAQ
Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer of concrete shuttering board, with our own factory covering an area of 150,000 square meters, and we have export qualifications
Q: Exported to which regions?
A: Our concrete shuttering board is exported to Southeast Asia, the Middle East, Africa, and Europe and America, with cooperation projects spanning over 70 countries worldwide
Q: How many times can the concrect shuttering board be reused?
A: 10-30 cycles under standard construction, much longer service life than plywood.
Q: Will it deform or soften under high/low temperature?
A: Stable from -20℃ to 60℃, suitable for tropical and cold region construction.
Q: What's your Minimum Order Quantity?
A: We are relatively flexible about the minimum order quantity and will provide you with reasonable minimum order suggestions based on the specific product specifications and order requirements .The larger the order quantity, the lower the unit transportation cost. Especially for larger products, we recommend using full rolls or full pallets for packaging, which can be loaded and transported more efficiently and save logistics costs.
Q: How long does it take to complete your order?
A: For standard items in stock, we usually ship within 3–5 working days. Custom or bulk orders may take approximately 10–25 days, depending on specifications and quantity.
Q: Can I get your quotation quickly of construction formwork?
A: Sure, please send us your required size, thickness and order quantity for exact offer.
Q: Can I print my brand logo on the plywood film?
A: Custom logo printing on concrete shuttering board surface is available based on your order quantity.
