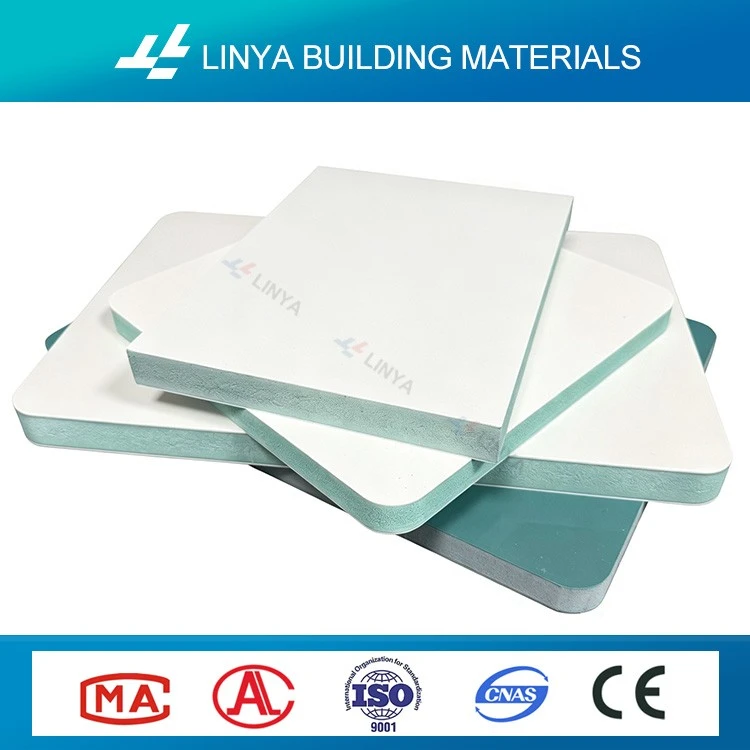

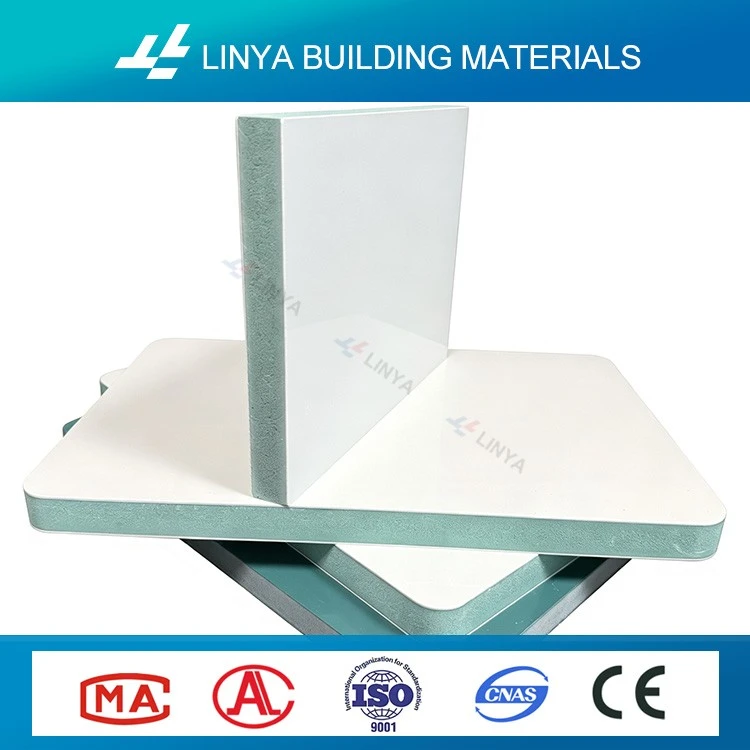

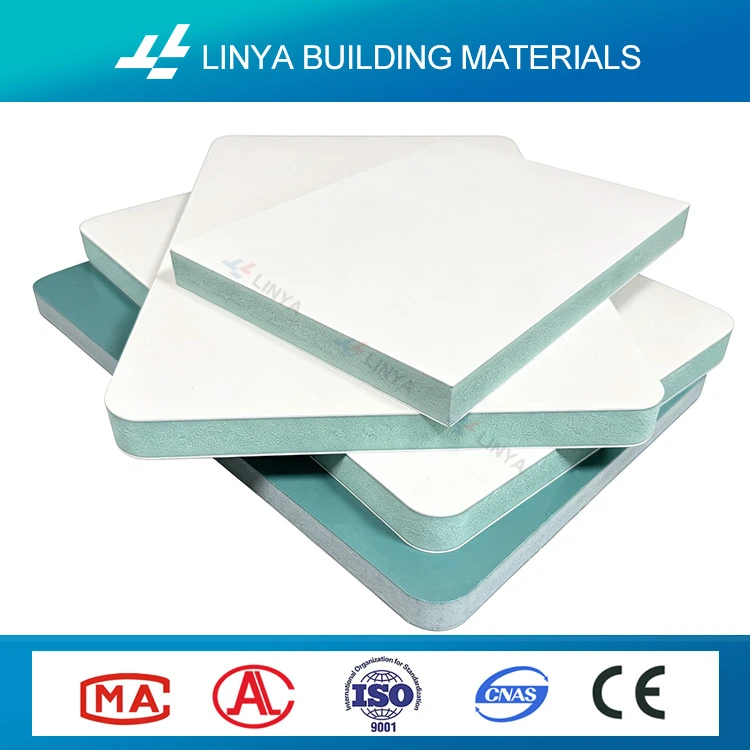

PVC plastic formwork is a new type of eco-friendly concrete casting template made from PVC resin. It's a modern construction material that replaces traditional wood formwork, plywood, and steel templates. The standard sizes match plywood, commonly 1220×2440mm, with a thickness of 12–18mm, and can be customized to your needs. Nowadays, our PVC plastic formwork is widely used in high-rise residential buildings, commercial complexes, factories, municipal bridges, box culverts, underground utility tunnels, and water conservancy projects. It can also be used for things like stage panels, livestock partitions, and temporary fencing. Our PVC plastic formwork is currently the go-to environmentally friendly formwork system for prefabricated and fast construction projects.
Product Parameters
|
Standard Size |
1220×2440mm, 915×1830mm; customize sizes available |
|
Thickness |
12/15/18/20mm, customize thickness available |
|
Raw Material |
polyvinyl chloride (PVC) |
|
Mechanical Property |
≥22MPa, high compression & bearing capacity, anti-bending |
|
Water Absorption |
≤0.03%, fully waterproof, no swelling, mildew or corrosion under damp condition |
|
Reuse Cycles |
80–120 times reusable, 100% recyclable after service life |
|
Surface |
Double-sided smooth, no release agent required for concrete casting |
|
Application |
Concrete pouring for walls, beams, columns, foundation and bridge projects |
Product Advantages
Smooth Concrete Finishes, Reduce Labor & Work Steps
Our PVC plastic formwork surface is smooth and dense, not sticky with cement. Most of the time, you don't need to apply a release agent during construction. After removing the formwork, the concrete walls are flat and smooth, so there's no need for large-scale plaster leveling, which reduces extra labor and mortar materials for repairs.
Higher reuse times, lower overall costs
Our PVC plastic formwork can be reused over 80 times under standard construction conditions, compared with only 3–8 times for wooden formwork and roughly 10 times for bamboo plywood. This substantially cuts repeated material procurement costs for long-term engineering projects.
Lightweight structure ensures safe handling, easy to transport and lift
PVC plastic formwork weighs only 1/7 of a steel formwork and 2/3 of a wooden formwork, light enough for single-person handling, it reduces high-altitude construction load, lowers tower crane lifting frequency on site, and effectively cuts overall transportation and labor costs.
Green & energy-saving, meets green construction requirements
PVC plastic formwork perfectly replaces traditional bamboo and wooden formwork, greatly saving timber resources, reducing deforestation, and fully complying with international green building standards.
Product Application
Application of PVC plastic formwork

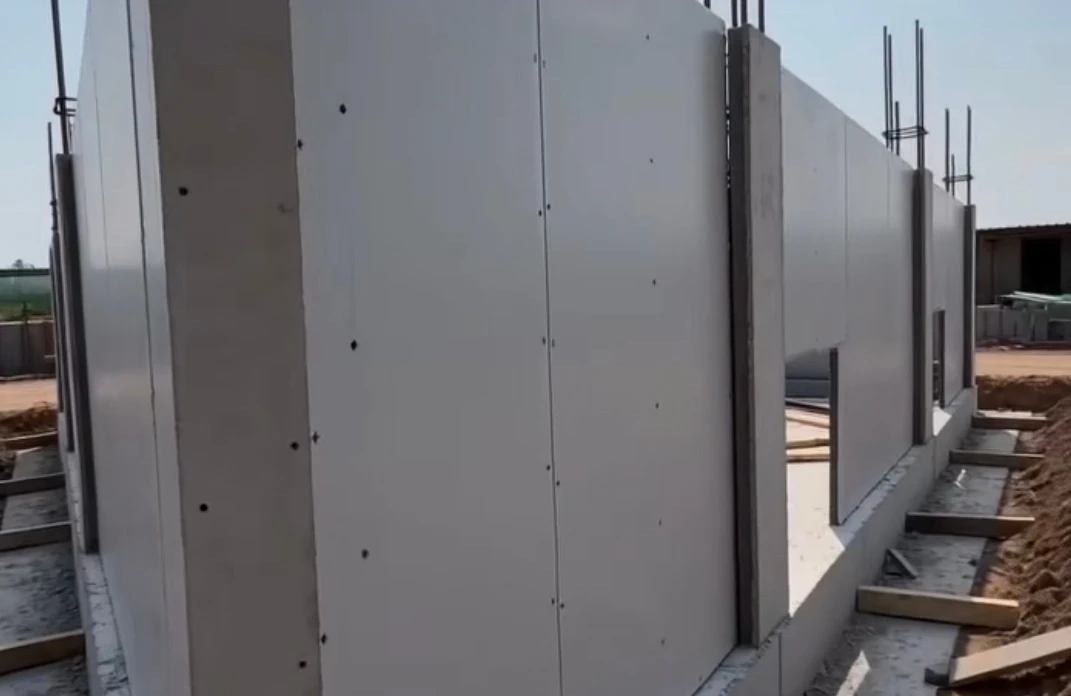

Residential and commercial buildings
Our PVC plastic formwork for high-rise, mid-rise residential buildings, resettlement housing, and apartment buildings; walls are smooth after removing the formwork, saving the plastering step.
Municipal Road and Bridge Projects
Municipal box culverts, underground utility tunnels, stormwater channels, bridge piers, cap beams, crash barriers
Water conservancy project
Levees, water gates, reservoirs, sewage treatment pools, channel linings, fish farming reservoirs.
Industrial Plants and Special Projects
Standard factory buildings, steel structures with concrete floors, equipment foundations, and ground beams.
Company Profile
Shenzhen Linya Building Materials Co., Ltd. has been dedicated to the R&D and production of building formwork and materials for 10 years, with business cooperation spanning over 70 countries worldwide, involving more than 9,000 project engineering projects. Its main products include Steel Prop, Plastic Formwork, PP hollow building formwork, PVC plastic formwork, Film Faced Plywood, LVL board, H20 Timber Beam and other full categories of building materials.
Own Factory
Own 150,000㎡ intelligent manufacturing plant in Linyi, with fully automated production lines and complete supporting facilities. Sufficient production capacity, strict quality control, stable quality, and customizable according to needs;
Professional Team
Our professional Shenzhen-based foreign trade team manages independent export operations, providing full one-stop services covering inquiry response, quotation, sampling, order confirmation, production following-up, export documentation, logistics arrangement and after-sales support, delivering reliable and worry-free service for all global clients.
10 Years
150,000 ㎡
70+ Countries
9000+ Projects

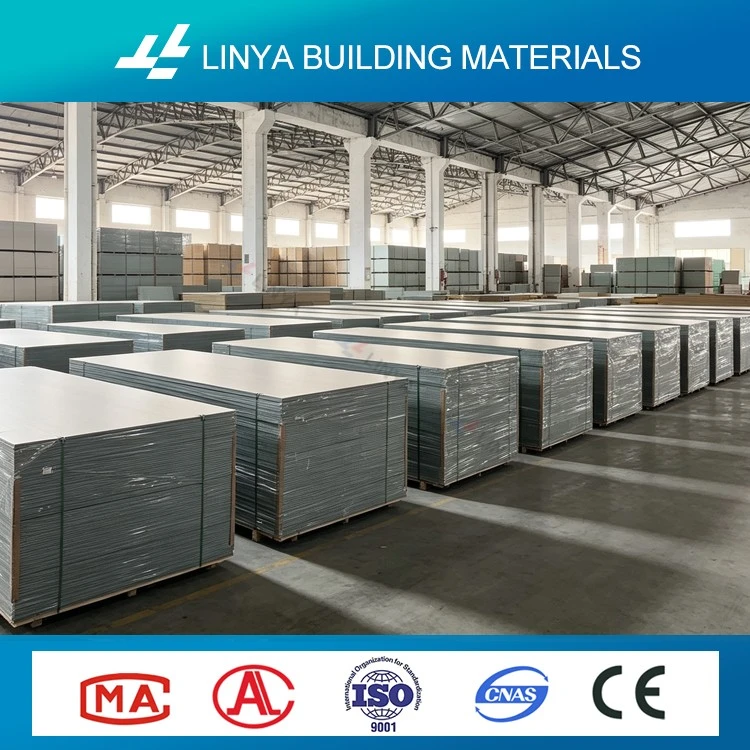

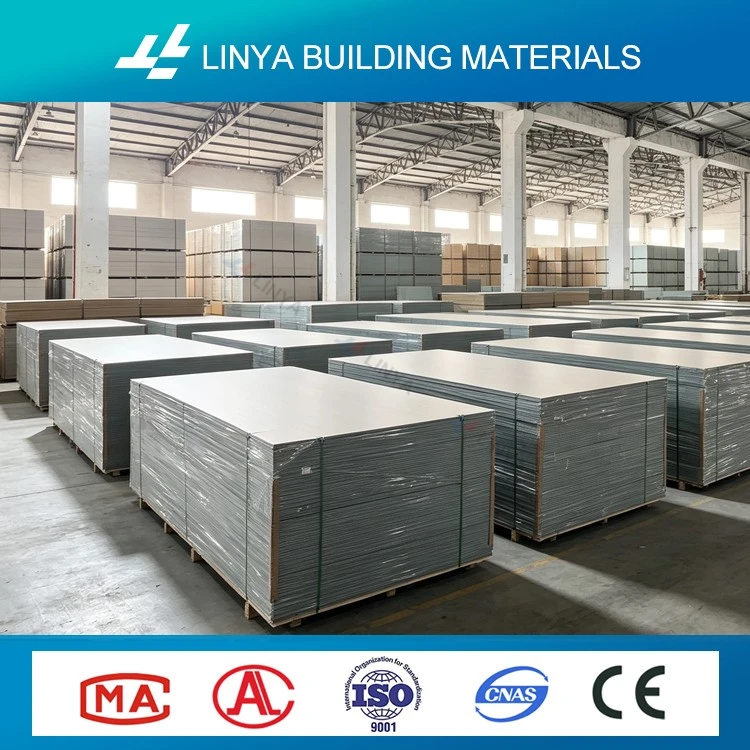

Production Workshop
Product Packaging
PVC Plastic Formwork Packaging
1. Loose bulk Packing:
Load more quantity and save cost
2. Pallet packing:
Easy to Load and Off-lode
Container Loading and Shipping
FAQ
Q1: Are you a factory manufacturer or trading company for PVC plastic formwork?
A1: We are a professional direct manufacturer specialized in PVC plastic formwork with our own factory covering an area of 150,000 square meters, and we have export qualifications.
Q2: Which countries and regions do you export your PVC plastic formwork to?
A2: Our high-performance PVC plastic formwork is widely exported to Southeast Asia, the Middle East, Africa, and Europe and America, with cooperation projects spanning over 70 countries worldwide
Q3: What raw materials are used for your PVC plastic formwork? Is it waterproof and corrosion-resistant?
A3: Our PVC plastic formwork is made of pure virgin PVC raw materials with modified additives. It features excellent waterproof, moisture-proof and anti-corrosion performance. It will not swell, deform or rot even after long-term use in humid, underwater, coastal and water conservancy construction environments.
Q4: How many times can your PVC plastic formwork be reused on construction sites?
A4: Under standard construction specifications, our PVC plastic formwork can be reused 80–120 times, far exceeding the service life of traditional wooden and bamboo formwork. It greatly reduces repeated material purchasing costs for long-term engineering projects.
Q5: Will the PVC plastic formwork soften or deform under high temperature or low temperature?
A5: Our PVC plastic formwork maintains stable physical performance in temperatures ranging from -20℃ to 60℃, suitable for tropical and cold region construction.
Q6: What is the MOQ for ordering your PVC plastic formwork?
A6: We have flexible MOQ policies for PVC plastic formwork to support both small trial orders and large bulk container orders. Larger order quantities effectively reduce unit logistics costs. We provide professional packaging and loading solutions (pallet packing / bulk packing) to maximize container space and save your overall transportation expenses.
Q7: What is your production and delivery lead time for PVC plastic formwork?
A7: Standard-size PVC plastic formwork in stock can be delivered within 3–5 working days. For customized sizes, special thicknesses and large bulk orders, the production cycle is about 10–25 working days according to specific specifications and order quantity.
Q8: What are the core advantages of PVC plastic formwork compared with traditional wood and bamboo formwork?
A8: Compared with traditional formwork, our PVC plastic formwork is lightweight, waterproof, corrosion-resistant and crack-proof. It supports free on-site cutting and nailing, provides mirror-smooth concrete finishing without secondary plastering, and features high reusability and recyclable residual value after service life. It is the most cost-effective upgraded construction formwork for modern engineering projects.
