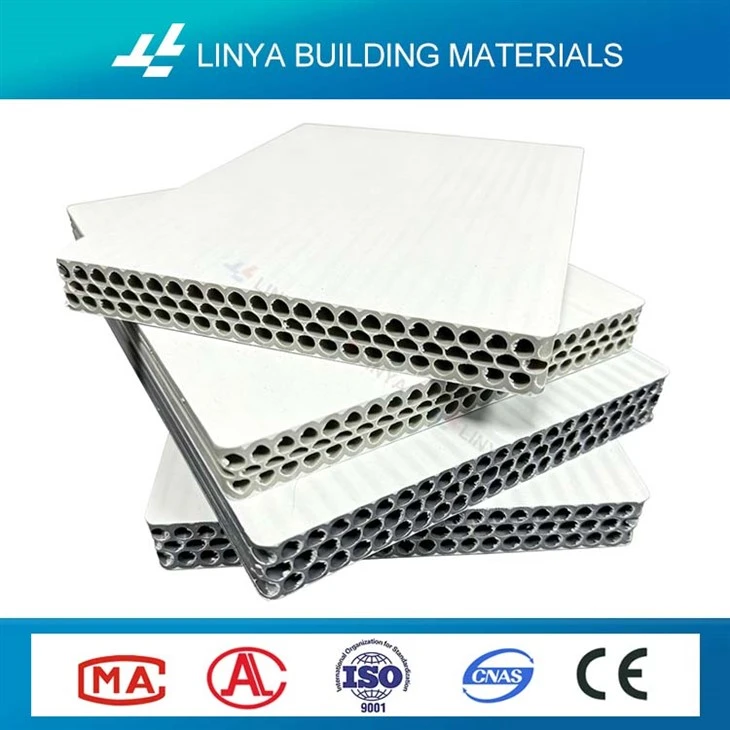

PP hollow building formwork, with standard sizes 915x1830mm and 1220x2440mm, other sizes can be customized! This sheet is made of plastic material, featuring excellent waterproof and anti-corrosion properties. The plastic formwork has strong load-bearing capacity and good ductility, making it resistant to bending or deformation, and less prone to damage when used for building support and concrete casting. PP hollow building formwork does not absorb water, expand, or mold, performing well in high-temperature, humid, or water-saturated construction environments, and is suitable for various harsh site conditions.
The hollow plastic template in PP can be reused hundreds of times, and it can be recycled and reused after disposal, saving energy and protecting the environment. The surface is flat and smooth, requiring no additional coating of separator during construction, making demolding easy and achieving a smooth and beautiful concrete effect.
Product Parameters
| Standard Size | 1220×2440mm,915×1830mm , custom sizes available |
| Thickness | 12/15/18/20mm, custom sizes available |
| Raw Material | Modified virgin PP polypropylene |
| Mechanical Property | Modulus of rupture ≥28MPa, high compression & bearing capacity, anti-bending |
| Water Absorption | ≤0.03%, fully waterproof, no swelling, mildew or corrosion under damp condition |
| Reuse Cycles | 80–120 times reusable, 100% recyclable after service life |
| Surface | Double-sided smooth, no release agent required for concrete casting |
| Application | Concrete pouring for walls, beams, columns, foundation and bridge projects |
Product Advantage

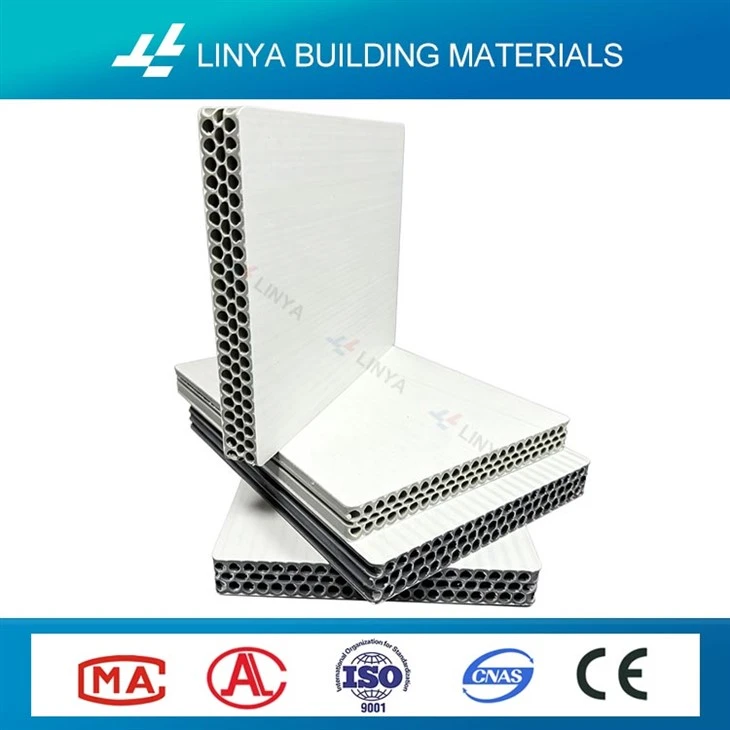

Lightweight And High-strength.
PP Hollow Plastic Formwork, its hollow design ensures low weight and high rigidity; easy for manual handling, reducing safety risks.
Waterproof, moisture-proof, and corrosion-resistant
PP Hollow Plastic Formwork,Suitable for high-temperature coastal buildings, hydraulic engineering, etc., no need for anti-corrosion treatment during use and storage, reducing construction costs
Repeated use multiple times, save costs
PP Hollow Plastic Formwork,Reusable 50 to 100 times, with low average usage cost; recyclable, total cost is more than 30% lower than wood.
Customizable, can be pinned, easy to demold
The hollow plastic template in PP can be customized in size, can be cut, drilled, and nailed. Demolding doesn't require coating with a demolding agent, making it easy to demold.
Product Application
Application of PP hollow plastic templates
Residential and commercial buildings
Walls, columns, beams, floors, stairs, cores of high-rise buildings
Infrastructure
Bridge piers, retaining walls, underground utility tunnels, canals, seawalls, coastal engineering
Prefabricated Concrete Factory
Prefabricated wall panels, staircases, curb stones, septic tank molds
Temporary On-site Facilities
Construction partitions, walkway panels, aquaculture pond linings within fish farms
Company Profile
Shenzhen Linya Building Materials Co., Ltd. has been dedicated to the R&D and production of building formwork and materials for 10 years, with business cooperation spanning over 70 countries worldwide, involving more than 9,000 project engineering projects. Its main products include Steel Prop, Plastic Formwork, PP hollow building formwork, PVC plastic formwork, Film Faced Plywood, LVL board, H20 Timber Beam and other full categories of building materials.
Own Factory
Own 150,000㎡ intelligent manufacturing plant in Linyi, with fully automated production lines and complete supporting facilities. Sufficient production capacity, strict quality control, stable quality, and customizable according to needs;
Professional Team
Shenzhen professional foreign trade team operates its own export, one-stop service for quotation, documents, logistics, and after-sales, giving you peace of mind.
10 Years
150,000 ㎡
70+ Countries
9000+ Projects
Production Workshop
Product Packaging
Hollow Plastic Formwork Packaging
1. Loose Packing:
Load more quantity and save cost
2. Pallet packing:
Easy to Load and Lade
Container Loading and Shipping
FAQ
Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer of Hollow Plastic Formwork, with our own factory covering an area of 150,000 square meters, and we have export qualifications
Q: Exported to those regions?
A: Our Hollow Plastic Formwork is exported to Southeast Asia, the Middle East, Africa, and Europe and America, with cooperation projects spanning over 70 countries worldwide
Q: What raw material is your hollow plastic formwork?
A: Made of virgin PP material, hollow structure, waterproof and acid-alkali resistant. No deformation even long-term immersion for coastal, underground and water conservancy projects.
Q: How many times can the formwork be reused?
A: 60-100 cycles under standard construction, much longer service life than plywood.
Q: Will it deform or soften under high/low temperature?
A: Stable from -20℃ to 60℃, suitable for tropical and cold region construction.
Q: What's your Minimum Order Quantity?
A: We are relatively flexible about the minimum order quantity and will provide you with reasonable minimum order suggestions based on the specific product specifications and order requirements .The larger the order quantity, the lower the unit transportation cost. Especially for larger products, we recommend using full rolls or full pallets for packaging, which can be loaded and transported more efficiently and save logistics costs.
Q: How long does it take to complete your order?
A: For standard items in stock, we usually ship within 3–5 working days. Custom or bulk orders may take approximately 10–25 days, depending on specifications and quantity.
