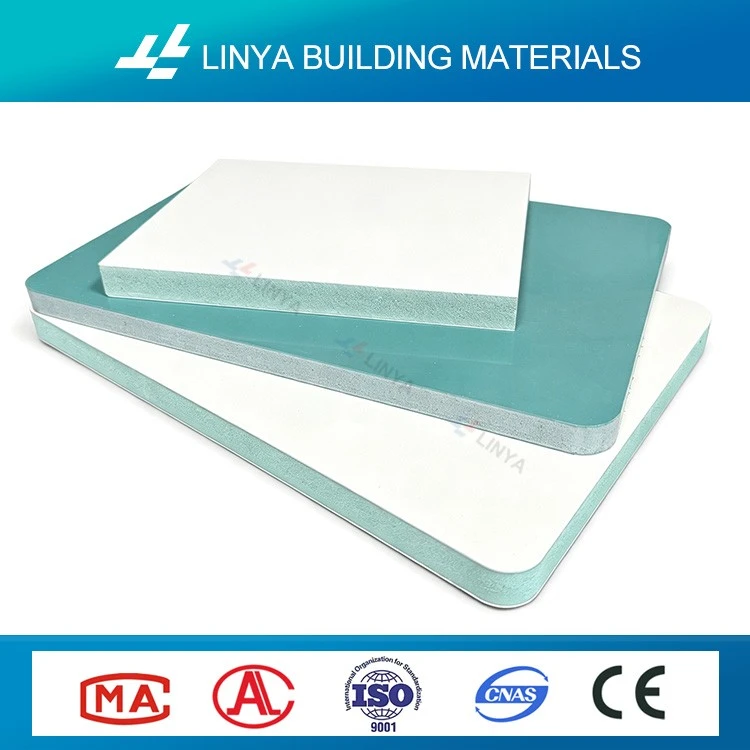

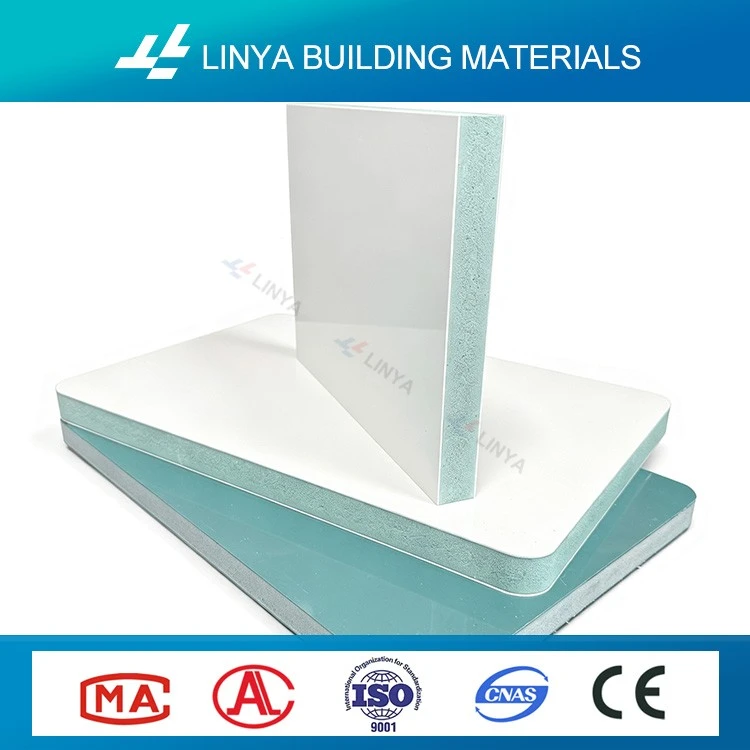

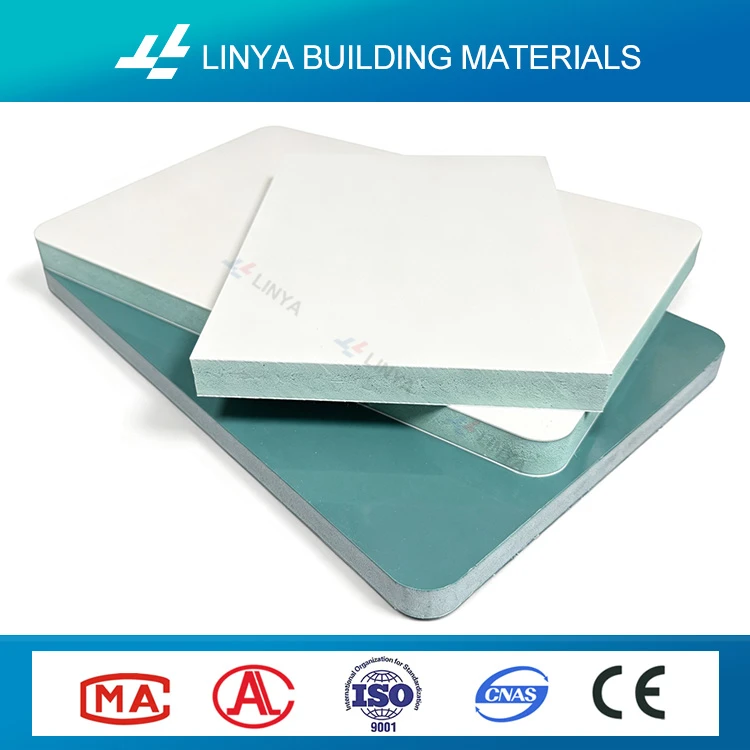

PVC plastic construction formwork is a new type of building support material mainly made from polyvinyl chloride. The PVC plastic construction formwork is waterproof, anti-corrosion, and has very low water absorption, so it won't easily warp or get moldy in damp or outdoor conditions. The PVC plastic construction formwork surface is smooth and flat, and it delivers smooth demolding performance, helping to improve concrete shaping quality. The panels feature high strength, good toughness and lightweight design; they are easy to cut and assemble to simplify construction work. The formwork can be reused numerous times for extended service life, lowering overall operating costs. In addition, used panels can be recycled for eco-friendly operation. Suitable for residential buildings, municipal works, bridges and water conservancy projects, PVC plastic construction formwork serves as an excellent upgrade alternative to traditional timber and bamboo formwork.
Product Parameters
|
Standard Size |
1220×2440mm, 915×1830mm |
|
Thickness |
12/15/18/20mm, custom sizes available |
|
Raw Material |
polyvinyl chloride (PVC) |
|
Mechanical Property |
≥22MPa |
|
Water Absorption |
≤0.03% |
|
Reuse Cycles |
80–120 times reusable, 100% recyclable after service life |
|
Surface |
Double-sided smooth, no release agent required for concrete casting |
|
Application |
Concrete pouring for walls, beams, columns, foundation and bridge projects |
Product Advantage
Excellent waterproof performance for reliable use in humid conditions.
Plastic construction formwork provides a solid, dense pore-free structure and ultra low water absorption rate. It prevents swelling, cracking, warping and rotting even under rain, standing water or humid conditions.
Excellent demolding performance delivers smooth, flawless concrete surfaces.
Plastic construction formwork features a smooth, dense and high-hardness surface with excellent concrete non-stick effect, reducing frequent release agent application during construction. After demolding, walls, floors, beams and columns display a perfectly smooth and even finish.
Stable mechanical properties with strong bending and impact resistance
Plastic Construction Formwork features standard conforming bending strength, it's tough enough, can endure hitting and bumping, and won't break or chip easily during installation or removal.
Higher reuse rate effectively reduces overall construction costs
Compared with traditional wooden formwork (3 to 6 times reuse) and bamboo plywood (8–12 times reuse), PVC plastic construction formwork can be reused over 80 times under standard construction conditions, offering a far longer service life.
Product Application
Construction Steel Prop Product Applications
Building construction project
Widely used in projects such as residential buildings, office buildings, factories, and resettlement housing, suitable for formwork of main structures like floor slabs, shear walls, frame beams and columns, structural columns, and door and window lintels.
Municipal engineering project
Can be applied to outdoor and underground construction scenarios such as urban utility tunnels, drainage ditches, manholes, retaining walls, road slopes, and small municipal structures.
Road, Bridge, and Tunnel Engineering
Formwork support used for bridge piers, cap beams, abutments, crash barriers, as well as culverts and secondary lining of tunnels.
Water conservancy and hydropower projects
Adapted for water-related structures like canals, dikes, reservoirs, pump stations, and riverbank protection.
Company Profile
Shenzhen Linya Building Materials Co., Ltd. has been dedicated to the R&D and production of building formwork and materials for 10 years, with business cooperation spanning over 70 countries worldwide, involving more than 9,000 project engineering projects. Its main products include Steel Prop, Plastic Formwork, PP hollow building formwork, PVC plastic formwork, Film Faced Plywood, LVL board, H20 Timber Beam and other full categories of building materials.
Own Factory
Own 150,000㎡ intelligent manufacturing plant in Linyi, with fully automated production lines and complete supporting facilities. Sufficient production capacity, strict quality control, stable quality, and customizable according to needs;
Professional Team
Our professional Shenzhen-based foreign trade team manages independent export operations, providing full one-stop services covering inquiry response, quotation, sampling, order confirmation, production following-up, export documentation, logistics arrangement and after-sales service delivering reliable and worry-free service for all global clients.
10 Years
150,000 ㎡
70+ Countries
9000+ Projects

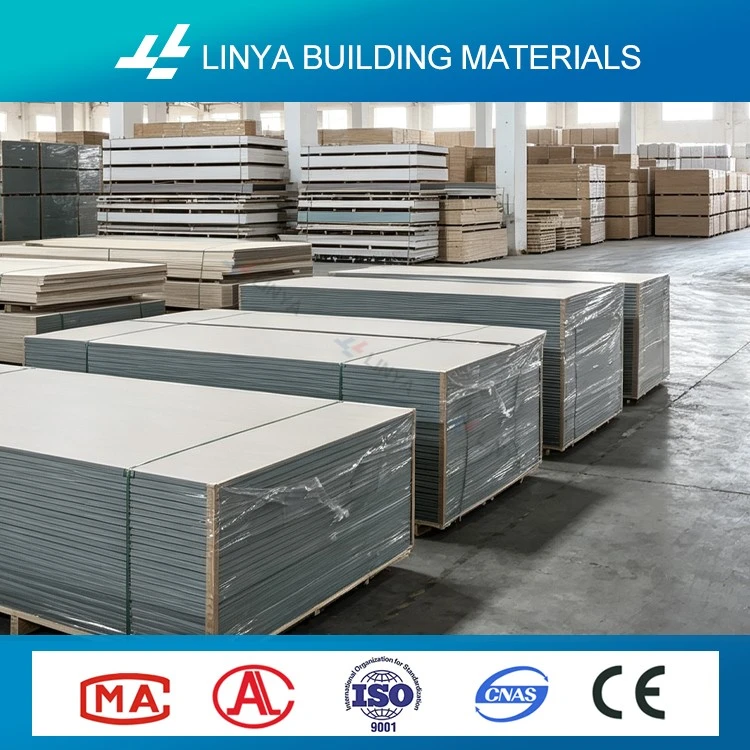

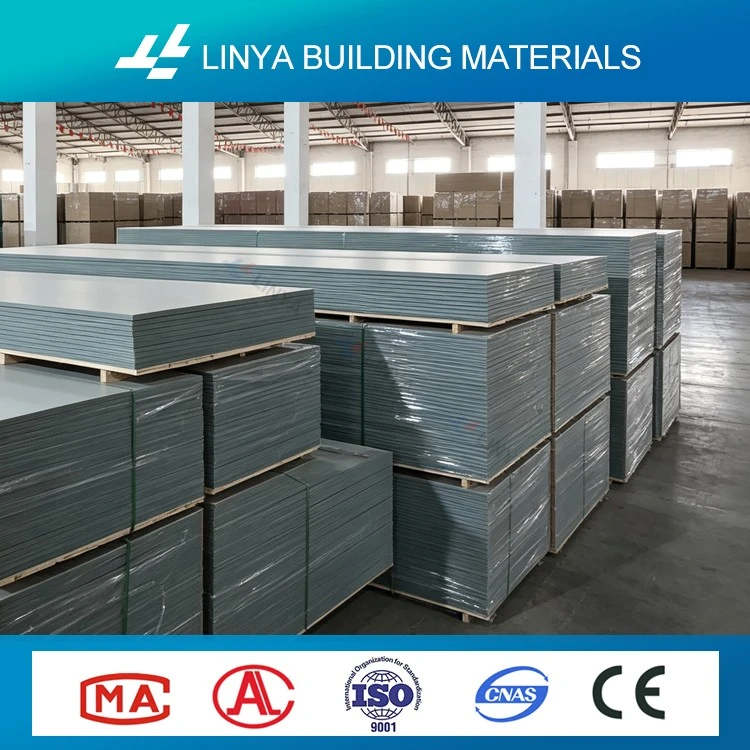

Production Workshop
Product Packaging
Plastic Construction Formwork Packaging
1. Loose bulk Packing:
Load more quantity and save cost
2. Pallet packing:
Easy to Load and Off-load
Container Loading and Shipping
FAQ
Q1: Are you a manufacturer or trading company?
A1: We are a professional direct manufacturer specialized in Plastic construction Formwork. We own a 150,000 ㎡ intelligent manufacturing factory and hold complete independent export qualifications, ensuring stable quality, sufficient production capacity and competitive factory direct prices for global clients.
Q2: Which countries and regions do you export to?
A2: Our high-performance Plastic construction Formwork is widely exported to Southeast Asia, the Middle East, Africa, Europe and America. Up to now, our products have served engineering projects in more than 70 countries across the world with long-term steady cooperation.
Q3: How many times can your Plastic construction Formwork be reused?
A3: Under standard construction specifications, our Plastic construction Formwork can be reused 60 to 100 times. It offers a far longer service life than traditional wooden plywood and bamboo formwork, effectively reducing repeated material procurement costs.
Q4: Will Plastic construction Formwork deform or soften under high and low temperatures?
A4: Our Plastic construction Formwork maintains stable physical performance at temperatures ranging from -20℃ to 60℃, suitable for tropical and cold region construction.
Q5: What is your MOQ for Plastic construction Formwork?
A5: We offer flexible MOQ policies for Plastic construction Formwork to suit different customer demands, including small trial orders and large bulk orders. Larger order quantities effectively lower unit transportation costs. Loose bulk Packing can be load more quantity and save freight cost, while full pallet packaging is recommended of easy loading and off-loading.
Q6: What is your order delivery lead time for Plastic construction Formwork?
A6: In-stock standard-size Plastic construction Formwork can be shipped within 3–5 working days. Custom-sized products and large bulk orders take 10–25 working days, subject to specific product specifications and order quantity.
Q7: What are the core advantages of Plastic construction Formwork over traditional formwork?
A7: Compared with wooden and bamboo formwork, Plastic construction Formwork features excellent waterproof, moisture-proof and anti-corrosion performance with no deformation in humid working conditions. It is lightweight, easy to cut and install, delivers smooth concrete finishing, and supports high reusability, greatly improving construction efficiency and cutting project costs.
Q8: Is Plastic construction Formwork environmentally friendly and recyclable?
A8: Yes. Plastic construction Formwork is a green eco-friendly building material. After completing multiple construction cycles, the retired formwork can be 100% recycled and reused as plastic raw materials, reducing construction waste and bringing extra recycling benefits for contractors.
