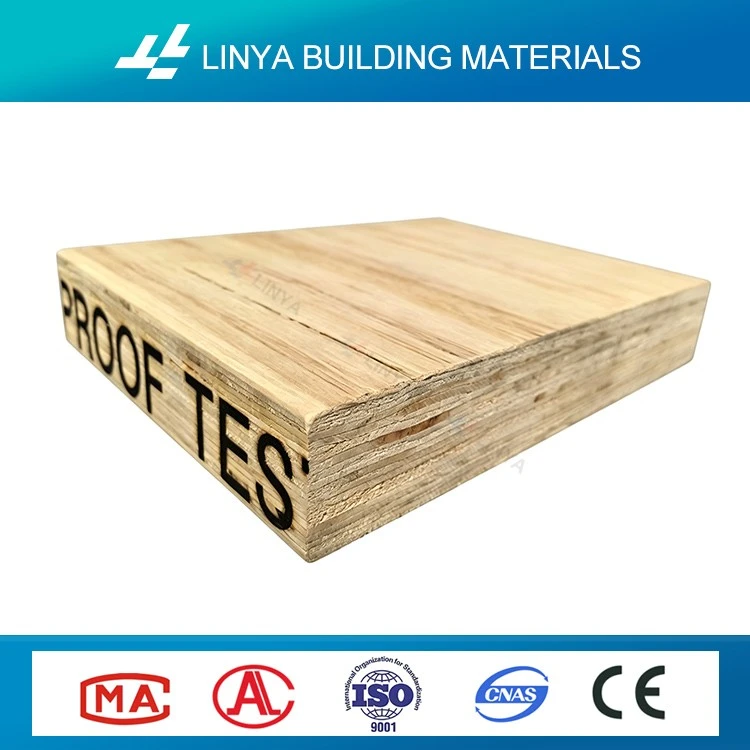

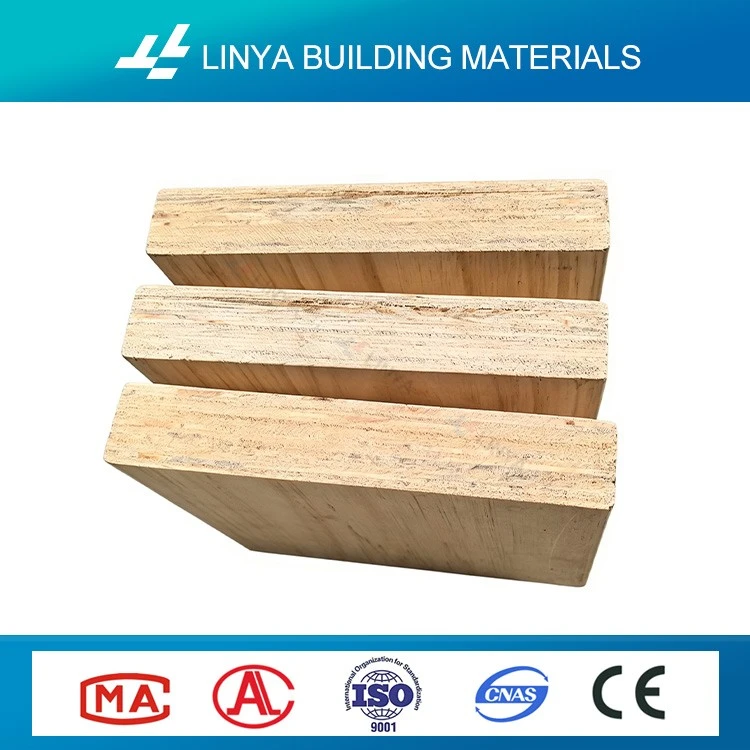

LVL Scaffolding Planks are high-strength engineered wooden structural materials. They are made from rotary-sliced veneers of pine and spruce logs. All the veneers are arranged in the same direction along the grain. They are combined with outdoor waterproof phenolic glue and pressed together under high temperature and high pressure. After drying and moisture control treatment, the natural wood defects are distributed layer by layer, resulting in uniform and stable overall mechanical properties. Their bending and tensile strength are much better than those of conventional solid wood square materials. The dimensions are not prone to distortion or cracking due to temperature and humidity changes. LVL Scaffolding Planks can be customized with extremely long specifications. The processing is convenient. They are waterproof and resistant to mud erosion. They can be cut and processed into high-strength flanges of solid wood I-beams, or used alone as load-bearing keels for high formwork and bridge projects. At the same time, LVL Scaffolding Planks are widely used in wood house load-bearing components, heavy equipment packaging and other fields. They are high-performance and high-turnover structural materials in construction.
Product Parameters
|
Thickness (General) |
18mm, 24mm, 30mm, 40mm, 45mm, 60mm |
|
Width |
Full plate width 600mm, 1220mm (custom size available) |
|
Moisture content |
8%–12% |
|
Density |
average 510kg/m³ |
|
Elastic modulus |
6700–13800N/mm² |
|
Tensile strength in the direction of the grain Approximately |
~ 26–35N/mm² |
|
Reuse times |
Up to 40 times or more can be recycled under normal construction conditions |
|
Weight per meter |
About 2.2–2.5kg/m based on 40×80mm specification |
Product Advantage
High overall strength, excellent load-bearing performance
All the boards of LVL Scaffolding Planks are laminated along the grain, without any local weak areas. LVL Scaffolding Planks' bending, tensile and compressive resistance are far exceed that of solid wood squares of the same size, meeting the requirements of heavy-load construction such as high formwork and bridges.
Excellent dimensional stability, not easy to deform or crack
With raw materials uniformly dried and controlled for humidity and internal stress evenly distributed, our LVL Scaffolding Planks are less affected by rainwater and temperature differences at the construction site. Our LVL Scaffolding Planks are unlikely to experience problems such as distortion, warping, sagging, or cracking over a long period of heavy use, and the formed structure maintains a stable level of support flatness.
Waterproof & erosion-resistant, with excellent durability on construction sites
The adhesive layer is resistant to corrosion by cement slurry and short-term water immersion, and it is unlikely to delaminate or peel off. Our LVL Scaffolding Planks is suitable for use in damp construction environments such as basements and outdoor open spaces.
Excellent processing performance, suitable for various working conditions
The material has a moderate hardness and can be freely sawed, drilled, grooved, and nailed at the site. Our LVL Scaffolding Planks can be cut and modified at various irregular positions such as staircases, arc-shaped components, beam and column edges and corners, etc. The construction adaptability is strong.
Product Application
LVL Scaffolding Planks Applications
Construction Template Support Field
Bridge piers, caps, formwork reinforcement ribs for cast-in-place box girders; special load-bearing ribs and main backstraps for high formwork, factory buildings, and large-span roof plates in underground garages
Lightweight wooden structure buildings
Door and window lintels, floor beams for load-bearing, main and secondary load-bearing beams for the roof; wooden house columns, large-span curved wooden components, double-story duplex load-bearing framework
Temporary works at the construction site
High-altitude construction operation platform, main beams at the bottom of the load-bearing scaffolding board; temporary viewing platform, overhead load-bearing framework for construction protection
Industrial Packaging and Logistics Transportation
Large-scale mechanical equipment export fumigation wooden frames, heavy equipment load-bearing bases; heavy-duty storage pallets, forklift logistics wooden blocks.
Company Profile
Shenzhen Linya Building Materials Co., Ltd. has been dedicated to the R&D and production of building formwork and materials over 10 years, with business cooperation spanning over 70 countries worldwide, involving more than 9,000 project engineering projects. Its main products include Steel Prop, Plastic Formwork, PP hollow building formwork, PVC plastic formwork, Film Faced Plywood, LVL Scaffolding Planks, H20 Timber Beam and other full categories of building materials.
Own Factory
Own 150,000㎡ intelligent manufacturing plant in Linyi, with fully automated production lines and complete supporting facilities. Sufficient production capacity, strict quality control, stable quality, and customizable according to needs;
Professional Team
Shenzhen professional foreign trade team operates its own export, one-stop service for quotation, documents, logistics, and after-sales, giving you peace of mind.
10+ Years
150,000 ㎡
70+ Countries
9000+ Projects
Production Workshop

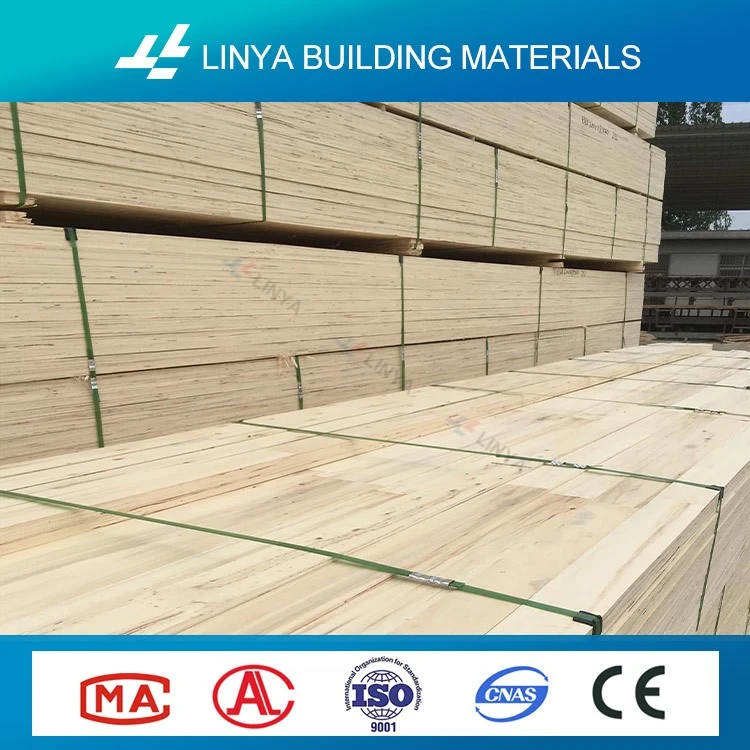

Product Packaging
LVL Scaffolding Planks Packaging
1. Loose Packing:
Load more quantity and save cost
2. Pallet packing:
Easy to Load and Off-load
Container Loading and Shipping
FAQ
Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer of LVL Scaffolding Planks, with our own factory covering an area of 150,000 square meters, and we have export qualifications
Q: Exported to those regions?
A: Our LVL Scaffolding Planks are exported to Southeast Asia, the Middle East, Africa, and Europe and America, with cooperation projects spanning over 70 countries worldwide
Q: How many times can the LVL Scaffolding Planks be reused?
A: 40 cycles under standard construction, much longer service life than plywood.
Q: Will it deform or soften under high/low temperature?
A: Stable from -20℃ to 60℃, suitable for tropical and cold region construction.
Q: What's your Minimum Order Quantity?
A: We are relatively flexible about the minimum order quantity and will provide you with reasonable minimum order suggestions based on the specific product specifications and order requirements. The larger the order quantity, the lower the unit transportation cost. Especially for larger products, we recommend using full rolls or full pallets for packaging, which can be loaded and transported more efficiently and save logistics costs.
Q: Can you arrange samples for us?
A: Yes, samples are available. We recommend small cut sample pieces for quality confirmation, which can save your freight cost and lead time.
Q: Do you accept custom orders, including custom sizes?
A: Yes, customization is supported.
The LVL Scaffolding Planks' standard board widths: 600mm & 1220mm
Standard thickness options: 18mm, 24mm, 30mm, 40mm, 45mm, 60mm
Any other dimensions can be customized as per clients' requirements.
Q: What is the delivery lead time?
A: In-stock standard-size LVL scaffolding planks can be shipped out within 3–5 working days.
For custom sizes, special thicknesses and large bulk orders, the production lead time will be 10–25 working days, depending on exact specifications and order volume.
